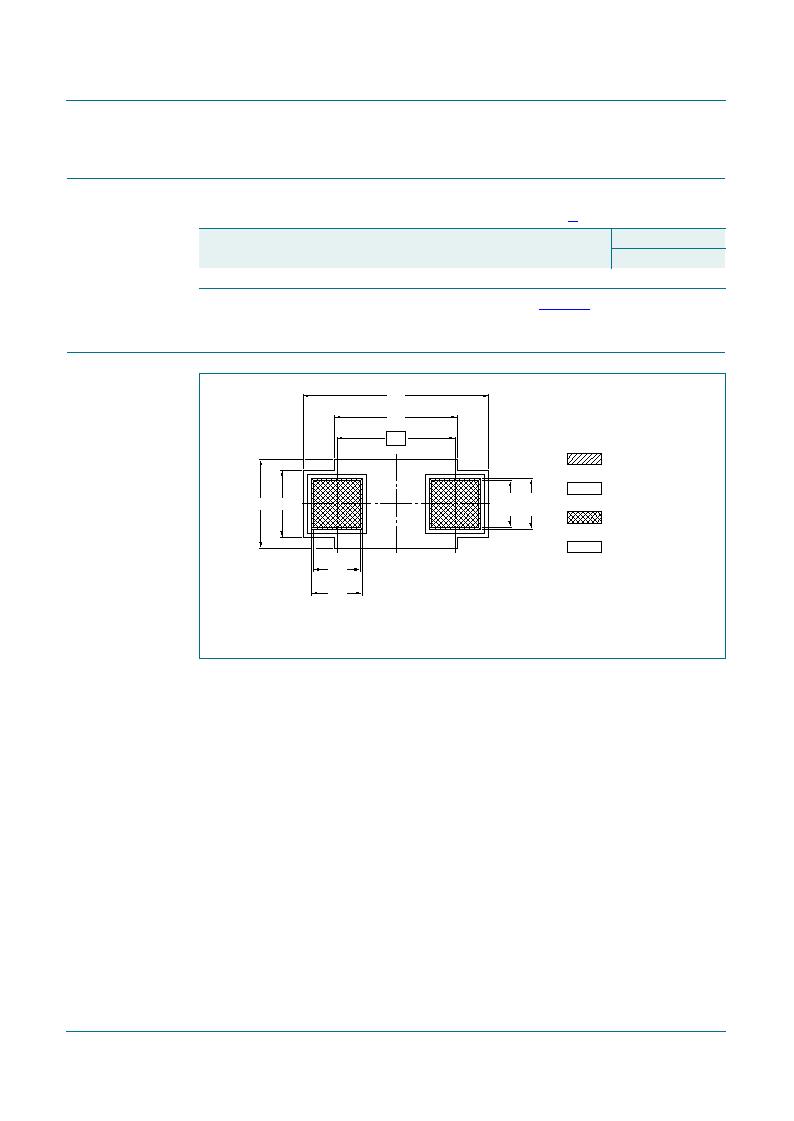

 PMEG4020ER_1 ? NXP B.V. 2009. All rights reserved. Product data sheet Rev. 01 — 22 October 2009 10 of 13 NXP Semiconductors PMEG4020ER 2 A low VF MEGA Schottky barrier recti?er 10. Packing information [1] For further information and the availability of packing methods, see Section 14. 11. Soldering Table 8. Packing methods The indicated -xxx are the last three digits of the 12NC ordering code.[1] Type number Package Description Packing quantity 3000 PMEG4020ER SOD123W 4 mm pitch, 8 mm tape and reel -115 Re?ow soldering is the only recommended soldering method. Fig 15. Re?ow soldering footprint SOD123W 2.9 2.8 4.4 2.1 1.6 1.1 1.2 ′) (2′) (2 solder lands solder resist occupied area solder paste 1.1 (2′) 1.2 (2′) sod123w_fr Dimensions in mm |
